PET BLOWER MACHINE

At COEQUAL INFOTECH, we specialize in manufacturing a wide range of PET bottle blowing machines tailored to meet the diverse needs of the packaging and bottling industry. Our product lineup includes Semi-Automatic PET Blow Molding Machines, Fully Automatic PET Blow Molding Machines, and Online PET Blow Molding Machines, engineered for efficiency, durability, and precision.

Our machines are designed with cutting-edge technology to produce PET bottles of varying sizes and shapes, catering to industries such as beverages, pharmaceuticals, cosmetics, and more. Key features and specifications of our PET bottle blowing machines include:

Technical Specifications of PET Blow Molding Machines

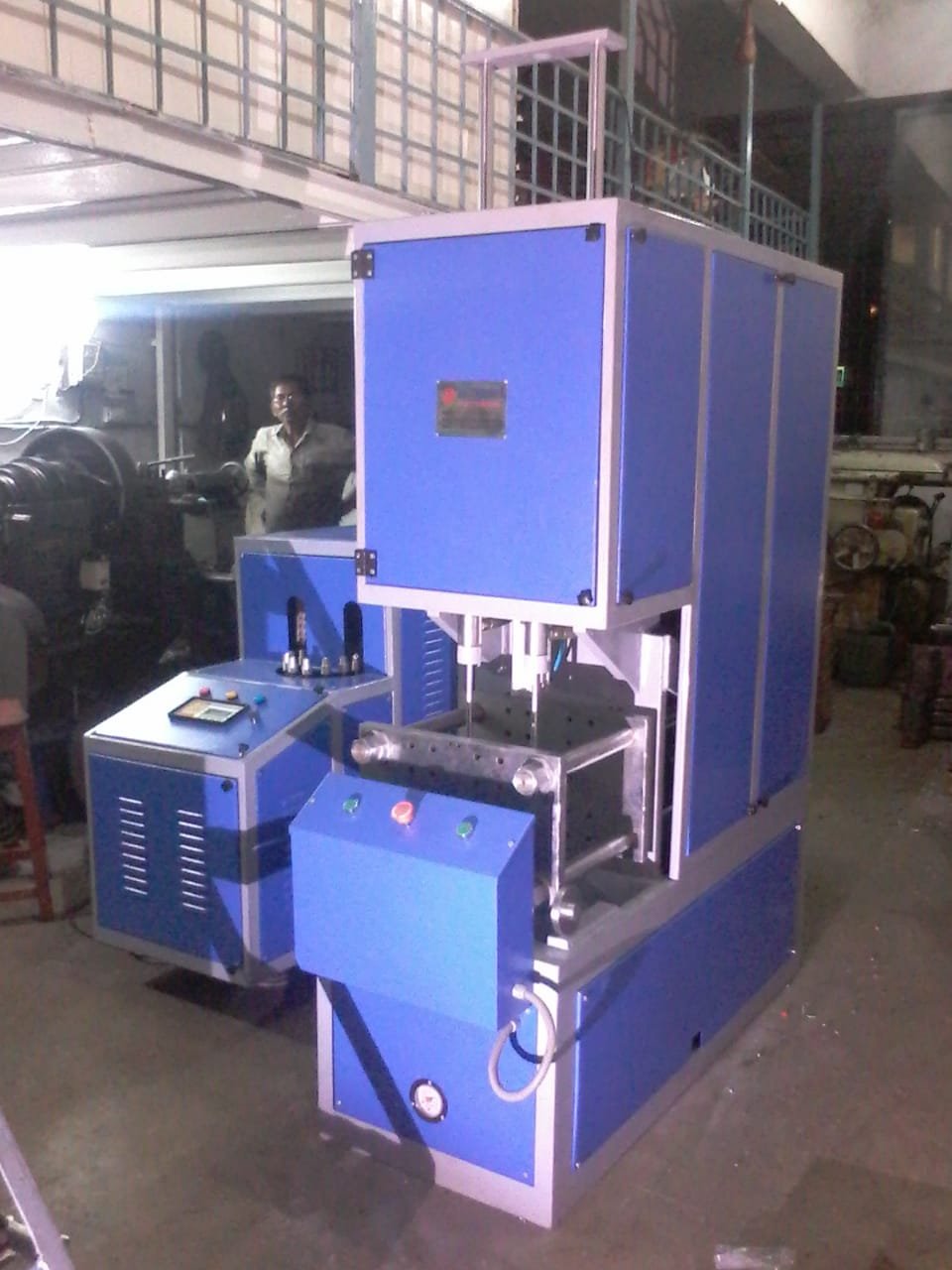

1. Semi-Automatic PET Blow Molding Machine

Ideal for small- to medium-scale production, this machine combines cost-effectiveness with high performance. It is designed for manufacturers looking for precise bottle molding with manual preform loading.

✎ Bottle Capacity: 100 ml to 5 liters.
✎ Output Capacity: Up to 1,200 bottles per hour (depending on bottle size and mold configuration).
✎ Mold Cavities: Single or dual cavity options.
✎ Heating System: Advanced infrared heating with adjustable zones for uniform preform heating.
✎ Control System: Microprocessor-based PLC for accurate temperature and time control.

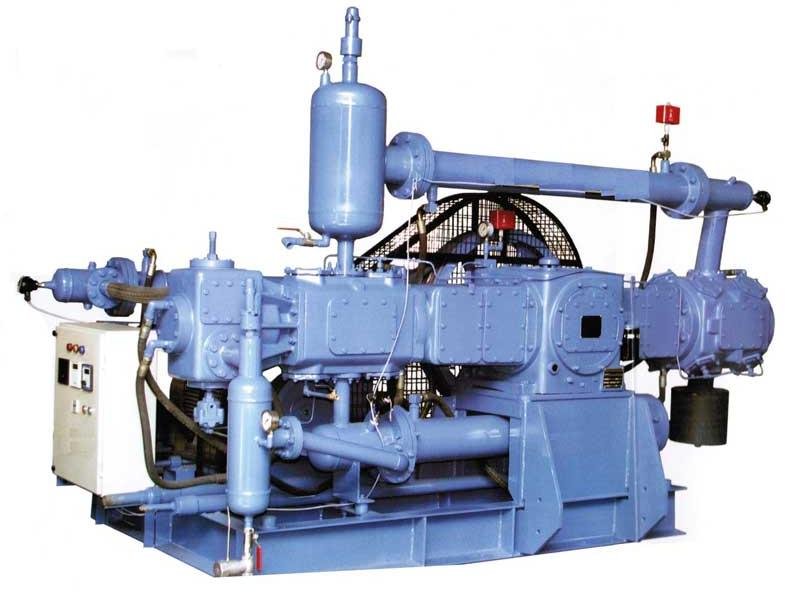

✎ Air Pressure Requirements: High-pressure air compressor (8–40 bar).
✎ Power Consumption: Low-energy operation, 8–12 kW per cycle.
✎ Material Compatibility: PET, PP, and other food-grade resins.

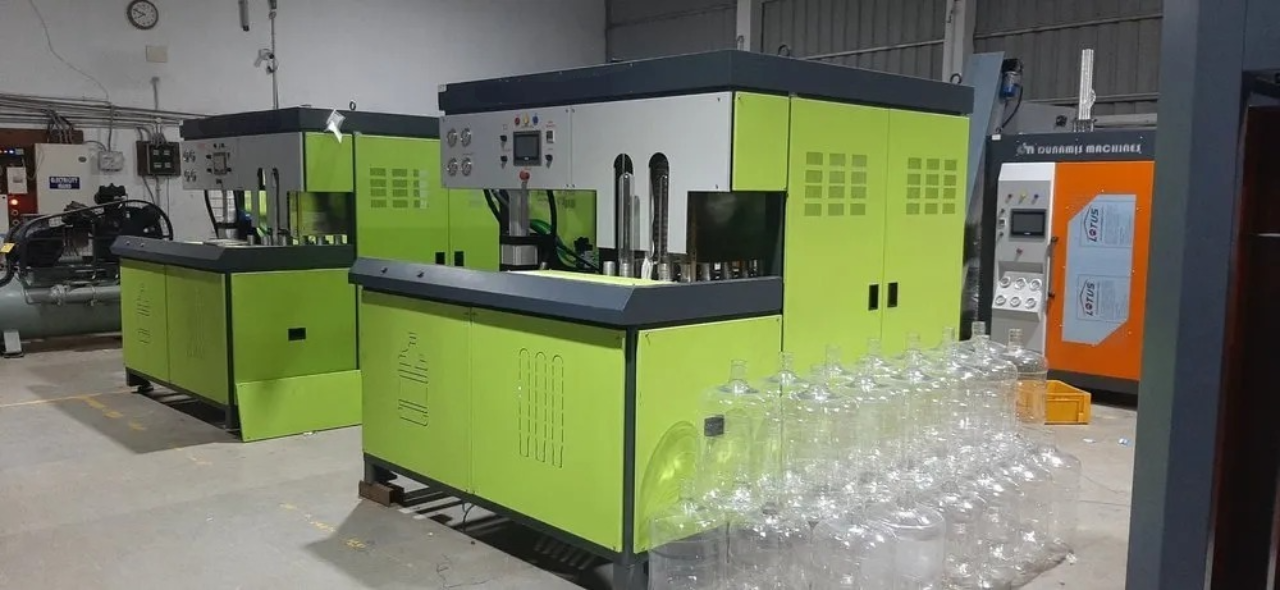

2. Fully Automatic PET Blow Molding Machine

Designed for high-volume production, this machine offers complete automation, from preform feeding to finished bottle discharge.

✎ Bottle Capacity: 200 ml to 20 liters.
✎ Output Capacity: Up to 6,000 bottles per hour.
✎ Mold Cavities: 2 to 8 cavities for large-scale production.
✎ Heating System: Servo-controlled infrared heating system for energy efficiency.
✎ Control System: Advanced PLC with a touchscreen interface for full automation.
✎ Clamping System: Servo-driven mold clamping for high precision and faster cycle times.
✎ Air Consumption: 8–10 bar for low-pressure, up to 40 bar for high-pressure applications.
✎ Power Requirements: 15–30 kW depending on model and capacity.
✎ Additional Features: Auto-deflashing, auto preform loading, and integrated cooling systems.

3. Online PET Blow Molding Machine

Tailored for industries requiring seamless integration with filling and capping lines, this machine ensures real-time bottle production with minimal downtime.

✎ Bottle Capacity: 200 ml to 2 liters.
✎ Output Capacity: Up to 10,000 bottles per hour with multi-cavity molds.
✎ Mold Cavities: 4 to 10 cavities for ultra-high-speed production.
✎ Heating System: Uniform heating via modular heating chambers.
✎ Automation Level: Fully automated with robotic arms for preform loading and bottle discharge.
✎ Integration: Supports online integration with downstream filling, labeling, and packaging lines.
✎ Air Requirements: High-pressure air system (40 bar) with recovery system for energy efficiency.
✎ Material Compatibility: PET and recycled PET (rPET).
✎ Power Efficiency: State-of-the-art design with low energy consumption, 18–40 kW based on configuration.
✎ Other Features: Precision neck calibration, bottle weight consistency, and minimal material wastage.

Why Choose COEQUAL INFOTECH Machines?

Our PET Blow Molding Machines are designed with the latest technology to meet the growing demand for high-quality bottle production. Each machine is tested for durability, efficiency, and precision, ensuring it meets the global manufacturing standards.
